Best Quality Plains Game Rifle .300 HH.Magnum Rimless
-
Step : 1/47Original Mauser Oberndorf commercial action with square bridge
-
Step : 2/47Receiver squared and blue printed
-
Step : 3/47Making a 25" 300 H&H Rimless Magnum barrel from a Lothar Walther match blank of 34CrNiMo6 steel, .308’’ diameter 10’’ twist
-
Step : 4/47Rear sight base soldered on ring
-
Step : 5/47Front claw mount base
-
Step : 6/47Front swivel ring base on barrel
-
Step : 7/47D&D special front sight support, top view
-
Step : 8/47D&D special front sight support, side view
-
Step : 9/47D&D side swing safety and new bolt handle
-
Step : 10/47Comparison between D&D modified bolt and Oberndorf original
-
Step : 11/47Bolt fitted to receiver
-
Step : 12/47Magnum type magazine box
-

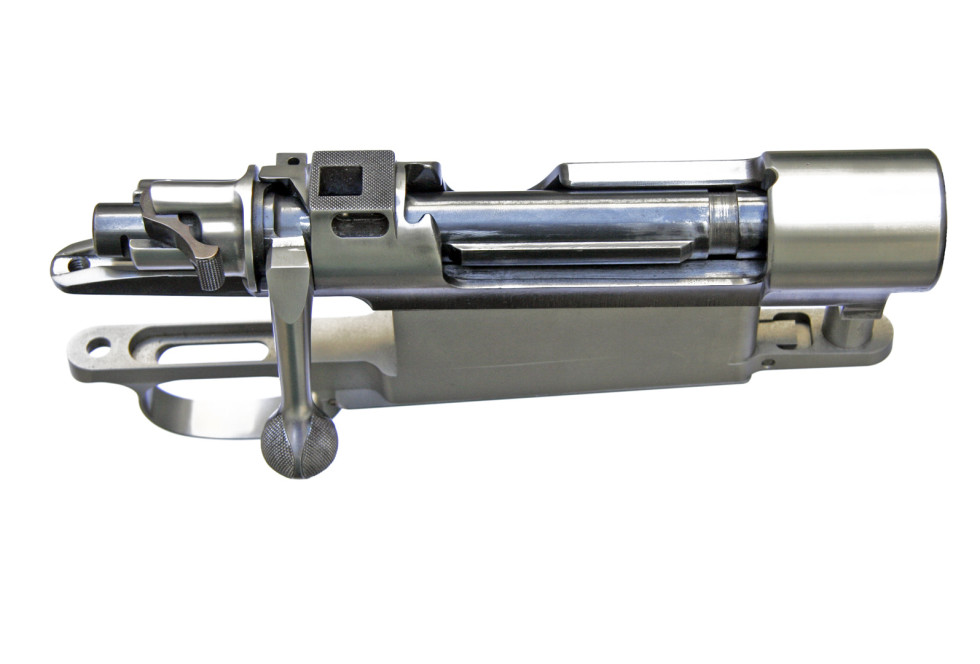

Step : 13/47Action assembled
-
Step : 14/47Old model S&B 3-12x42 Wetzlar scope with fine n°4 reticle on front claw mount and Oberndorf rear bolting into square bridge
-
Step : 15/47Lyman n°1 peep sight fitted to cocking piece
-
Step : 16/47Lyman n°1 peep sight folded
-
Step : 17/47Lyman n°1 peep sight in sighting position
-
Step : 18/47French walnut blank rough machining
-
Step : 19/47Receiver inletting
-
Step : 20/47Putting receiver in wood
-
Step : 21/47Completed inletting
-
Step : 22/47General D&D shaping
-
Step : 23/47Assembly in the white
-
Step : 24/47Refining the shape
-
Step : 25/47Final assembly in the white before bedding
-
Step : 26/47Bedding
-
Step : 27/47Oil finish
-

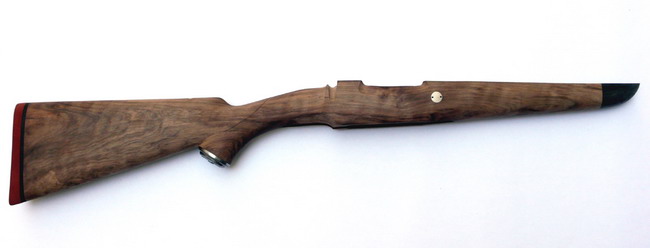

Step : 28/47Finished stock
-

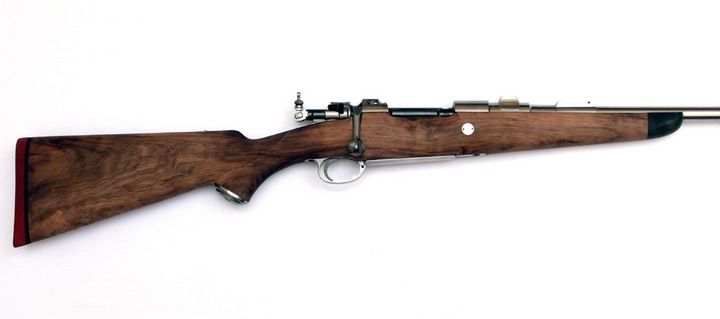

Step : 29/47Reassembly in the white for test, right side view
-

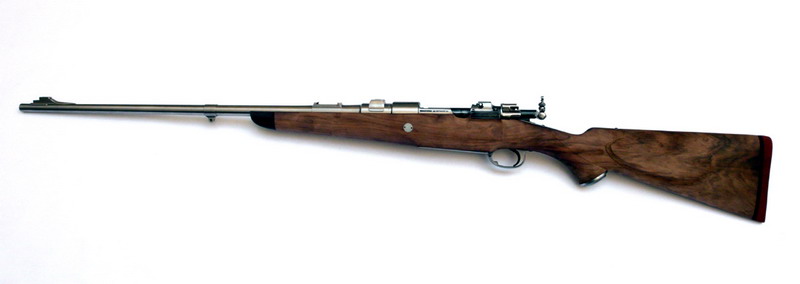

Step : 30/47Reassembly in the white for test, left side view
-
Step : 31/47Left side view of rifle assembled in the white for range testing
-
Step : 32/47Rear view of rifle assembled in the white for range testing
-
Step : 33/47Assembly after bluing
-
Step : 34/47Left side view of fully finished action
-
Step : 35/47Top view of finished action
-
Step : 36/47Side swing safety and special trigger detail
-
Step : 37/47Barrel markings
-
Step : 38/47Express rear sight
-
Step : 39/47D&D special front sight
-
Step : 40/47True ivory Moon Sight
-
Step : 41/47Lyman n°1 peep sight on cocking piece
Rear scope mount base bolting system integrated in square bridge -
Step : 42/47Scope mounted
-
Step : 43/47Floorplate engraving detail
-
Step : 44/47Serial number on trigger guard bow
-
Step : 45/47Cheekpiece, gold oval and grip cap detail
-
Step : 46/47Completed rifle without scope
-
Step : 47/47Completed rifle with scope mounted
